Biometric Waterproof Mobile Reader (TA-HH) Time Clock

Biometric Waterproof Mobile Reader (TA-HH) Time Clock

Download PDF

Waterproof Mobile Reader

A variety of models are available.

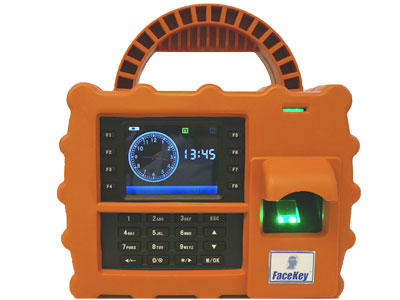

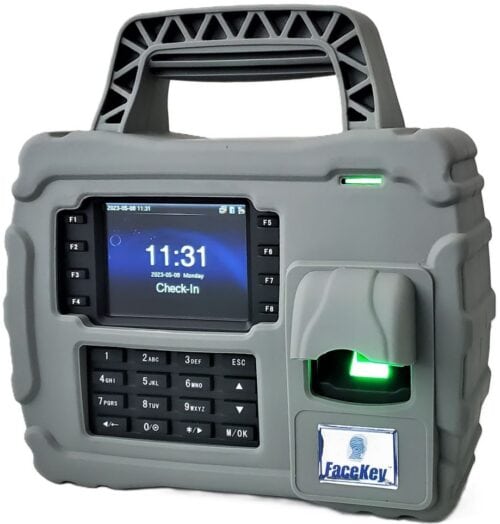

FaceKey’s EntryGuard™ mobile reader identifies the user and records who, when and where the reader is used. The TA-HH is a unique portable fingerprint attendance terminal with a rubber coating. The unit is waterproof and dustproof with efficacy rated at the IP65 protection grade. The TA-HH is shockproof up to one meter above the ground, if dropped. The unit has a handle at the top.

The TA-HH mobile reader with its low power consumption and design delivers long standby and usage time. The unit comes with a long life lithium-ion battery.

High Capacity Feature

The standard fingerprint capacity of the unit is 5,000 and can be ordered with a capacity of 10,000 templates. The TA-HH is available with generic or Mifare card readers.

Applications

The EntryGuard™ mobile TA-HH lends itself to a variety of applications. For example: time and attendance systems, mustering drills or custom applications.

The mobile device is convenient for attendance in industries such as construction, mining and agriculture.

Compatibility:

The fingerprints enrolled by the TA-HH fingerprint reader can be shared with other EntryGuard ™ devices. The mobile models are network based and utilize the same software common to the entire EntryGuard™ family of products.

Expandability

The Linux OS offers more flexibility for integrators to develop new and custom applications and features.

* HID card format H10301 26 bit

Download PDF

Description

Benefits and Options

  • OS Linux
  • Equipped with optical fingerprint reader and keypad
  • 16-Key Keypad 0-9 and 6 function keys
  • 8 Programmable function keys/hot keys
  • Acknowledgment of acceptance: LED indicator, display indication and voice reply
  • Centralized enrollment available with Management Software (optional)
  • Database: Access, SQL and others available with FaceKey™ Management Software package
  • SMS (Short Message System) individual and public
  • Daylight savings time (DLST)
  • T9 input for Alpha input at keypad
  • 3.5” TFT display

Technical Specifications:

  • Connectivity:                 TCP/IP, RS232 & USB host
  • Optional:                       WiFi, GPRS or 3G(WCDMA)
  • Fingerprint Capacity:      5,000 (Optional 10K)
  • Card Capacity:               30,000
  • Transaction Storage:     200,000 activities
  • Identification Time:       <=1s
  • FAR:                             <=0.0001%
  • FRR:                             <=1%
  • Power Supply:               AC-110-230/ DC 5V 2A
  • Battery                          7600 mAh Lithium-ion
  • Battery Life Usage          4 hours
  • Battery Life Standby       3 days
  • Dimensions:                  9 X 9.25 X 5 (H X W X D)
  • Temperature Range:      32°-113°F (0°-45°C)
  • Humidity Range:            20%-80%
  • Net weight (with battery):           468g (1.2 lbs.)
  • Protection Grade:           IP65
